How To Know If A Wire Is Double Insulated?

Before installation, quickly verify whether a cord or wire is double insulated — here’s an inspector’s checklist you can use. Double Insulated Wire provides enhanced safety for electronic products, and knowing how to tell if double insulated wire has been supplied is crucial for quality inspectors, purchasers, and technicians. At Guangdong Jiaqixing Electric Technology Co., Ltd. (JQX factory), we manufacture a wide range of certified double insulated wires suitable for global markets.

Quick checklist: first things to confirm

When you receive a shipment of cables or need to approve a supplier, the first step is to run through some quick checks. These simple confirmations will save you time and help you filter out low-quality or misrepresented products.

Look for the double-insulation symbol

The most reliable sign of a double insulated wire is the square-within-a-square marking. This symbol is widely used to identify Class II insulation and is often printed on the wire’s jacket or accompanying packaging. If this symbol is missing, it may mean the cable is not double insulated or the supplier has failed to follow proper labeling requirements.

Check the datasheet or manufacturer label

A legitimate manufacturer will clearly indicate “double insulated” or “Class II” on product datasheets and labels. Always request the technical datasheet before approving a batch. If the words are vague, missing, or only partially stated, it raises concerns about the wire’s quality and compliance. For large procurement projects, buyers should even compare datasheets across different product lines to confirm consistency.

Physical inspection steps

Documentation is important, but a physical inspection gives additional assurance. This step helps you verify what is inside the cable, not just what is printed on the outside.

What to look for in a cable cross-section

A true double insulated wire will have two separate layers of protective material. The inner layer often uses FPE, PVC, or Teflon, while the outer layer may be a tougher PVC or fluoropolymer. When viewed in cross-section, you should clearly see both layers as distinct barriers. In addition, the thickness of the two layers should be uniform and smooth, without bubbles, voids, or uneven surfaces.

How to safely examine cable ends

If you want to check cable ends, make sure you only inspect wires that are not connected to power. A factory-prepared cutaway sample is the safest way to see the internal structure without damaging product quality. Inspectors can request that suppliers provide sample cutaways, where the two layers of insulation are visible and measurable. In some cases, the ends can be stripped back carefully using a precision cutter, allowing you to observe whether two distinct jackets exist.

Documentation and certifications to request

A strong supplier will provide documentation that confirms insulation levels, materials, and compliance with international standards. Asking for the right paperwork helps buyers avoid risky products.

Ask for cert docs and spec sheets

Look for certification marks such as ETL, SAA, PSE, KC, VDE, and CE. These independent testing approvals indicate that the Double Insulated Wire has been properly evaluated for safety and performance. A good datasheet will also mention insulation thickness, operating temperature, and dielectric strength. The absence of these technical parameters often signals that the supplier lacks proper quality control.

Supplier questions to include

Beyond the certificates, purchasers should ask for detailed information such as the type of inner material used, dielectric test results, and the mechanical strength of the outer jacket. These details confirm that the supplier has carried out proper testing and can back up their claims with data. Some buyers even ask for factory audit reports or photographs of the production process to ensure compliance at every stage.

How to tell if double insulated through testing

Sometimes visual and document checks are not enough. In sensitive projects, buyers may need to perform electrical testing. These methods should only be carried out by qualified personnel with the right equipment.

Insulation resistance testing

Using a megohmmeter (megger), technicians can measure insulation resistance between conductors and between conductor and jacket. A high resistance value confirms that the insulation layers are intact. This test is often part of factory quality control but can also be requested by purchasers for independent verification. Testing at different temperatures can also reveal whether the insulation remains stable under heat stress.

Why continuity alone is insufficient

Some inexperienced buyers rely only on continuity tests, which only check if current flows through the conductor. This does not confirm insulation quality. A wire can pass a continuity test but still lack the second insulation layer. That is why insulation-specific testing is essential when confirming Double Insulated Wire. In fact, continuity tests should only be considered a preliminary step, while insulation resistance and dielectric strength tests provide the real evidence.

When to reject and when to accept

Even when certifications and test reports are presented, the final inspection step is to know the conditions under which you should accept or reject a shipment.

Signs of inadequate insulation

Flaking, cracking, or peeling of the outer jacket indicates poor quality. Contaminant ingress, such as visible dirt or moisture trapped between layers, is also a red flag. If you see discoloration or brittle texture, the cable may have been manufactured with substandard materials. Over time, poor insulation can lead to overheating, short circuits, or even fire risks, so strict rejection criteria are necessary.

Acceptable labeling vs suspicious documentation

Accept a shipment when the marking is clear, certificates are recent, and spec sheets contain detailed technical data. Reject products if the labeling is missing, if documents are outdated or incomplete, or if the supplier cannot answer technical questions about insulation. A trustworthy manufacturer will always provide transparent information. Buyers should keep a record of all inspection notes, so future shipments can be compared for consistency.

Why JQX double insulated wires are a reliable choice

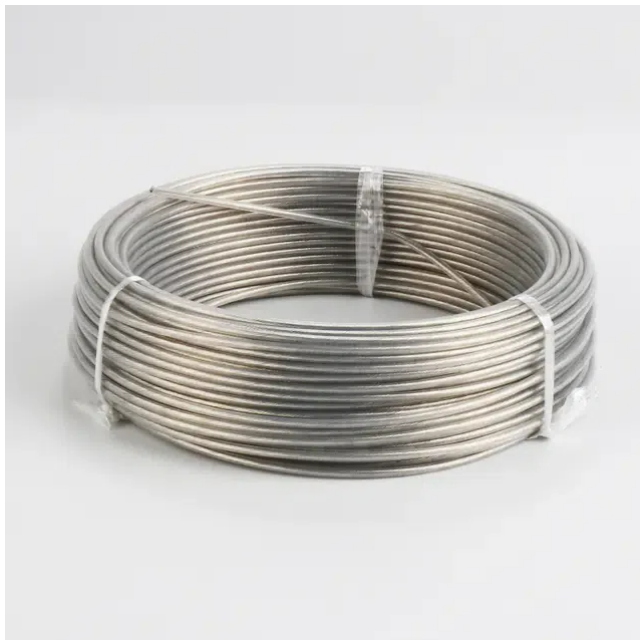

At JQX factory, we design and manufacture Double Insulated Wire with multiple protective layers such as inner FPE with outer PVC, double-layer PVC, or double-layer Teflon, ensuring compliance with international standards. Our wires are certified by ETL, SAA, PSE, KC, VDE, and CE, making them suitable for a wide range of applications in electronics, household appliances, and lighting. With 28 production lines and an annual capacity of 90 million units, we are equipped to deliver consistent quality and meet high-volume demands.

In addition, JQX maintains ISO-certified processes and a professional R&D department that continuously develops new insulation structures for improved performance. Customers benefit not only from safe and durable products but also from technical support, detailed documentation, and responsive service. For buyers who want to minimize risks and ensure compliance, partnering with a manufacturer that takes insulation quality seriously is the safest choice.

Conclusion

Knowing how to tell if double insulated wire has been supplied is an essential skill for inspectors, purchasers, and technicians. From checking the square-in-square symbol to reviewing datasheets, requesting certifications, performing physical inspections, and verifying with insulation resistance testing, these steps help ensure product safety and compliance. At Guangdong Jiaqixing Electric Technology Co., Ltd., our Double Insulated Wire is manufactured with strict quality standards and backed by international certifications. To learn more or request sample cross-sections and technical reports, contact us today.
