Choosing the right wire gauge for your lamp can be confusing. Whether you're fixing an old lamp or installing a new one, understanding lamp wire gauge is key.
In this post, we’ll explain what lamp wire gauge is, why it matters, and how to choose the best one for your needs.
When we talk about lamp wire gauge, we're really referring to the thickness of the electrical wire inside the lamp cord. This thickness determines how much electrical current the wire can safely carry. The gauge also affects the lamp's overall performance and safety. The right wire ensures your lamp runs efficiently without overheating or causing potential hazards.
To measure the thickness of the wire, we use the American Wire Gauge (AWG) system. This system assigns a numerical value to each wire gauge, helping us easily compare wire sizes. In general, lower gauge numbers indicate thicker wires, while higher numbers represent thinner wires.
The gauge number plays a key role in understanding the wire's capabilities.
Lower numbers (like 14-gauge) mean the wire is thicker and can handle more current. These are ideal for high-powered lamps or fixtures.
Higher numbers (such as 18-gauge) indicate thinner wire, which is suitable for lighter loads. These are often used for small lamps or low-wattage applications.
Choosing the right gauge wire depends on the lamp’s power needs and the overall safety requirements.
For most lamps, 18-gauge wire is the go-to choice. It's thin enough to be flexible and easy to work with. Despite its smaller size, it has enough capacity to carry the current needed for typical household lighting. This makes it ideal for portable lamps, table lamps, and other light fixtures. The 18-gauge wire offers a good balance between safety, flexibility, and efficiency, making it the standard in many applications.
While 18-gauge wire works for most general lamp wiring, there are times when a thicker wire is necessary. Both 16-gauge and 14-gauge wires are used for heavier applications.
16-gauge wire is often used for extension cords or light fixtures that draw higher currents, typically up to 13 amps. This makes it suitable for larger lamps or multiple bulb setups.
14-gauge wire is ideal for heavier-duty lighting setups, such as lamps that require up to 15 amps of power. It’s also used in lighting circuits that carry more power.
Each of these thicker wires ensures that the lamp or fixture gets the proper amount of power without causing the wire to overheat or become a safety hazard.
Choosing the correct gauge for lamp wire is essential for ensuring both safety and long-term performance. If the wire is too thin, it may not be able to carry enough current, which can cause it to overheat and create a fire hazard. On the other hand, a wire that's too thick can make the lamp more difficult to assemble and use, especially for portable models. It’s all about finding the right balance between power and ease of use.
Current Handling Capacity: Thicker wires, like 14-gauge, can carry more current without overheating. This makes them ideal for lamps that require higher power.
Safety: A correctly chosen wire gauge helps ensure that your lamp runs safely without overheating. Using a wire that’s too thin can lead to electrical hazards.
Flexibility: Thinner wires, such as 18-gauge, are much more flexible. This makes them perfect for portable or adjustable lamps, where movement and flexibility are important.
Each gauge of wire plays a key role in how well your lamp works and how safe it is to use.

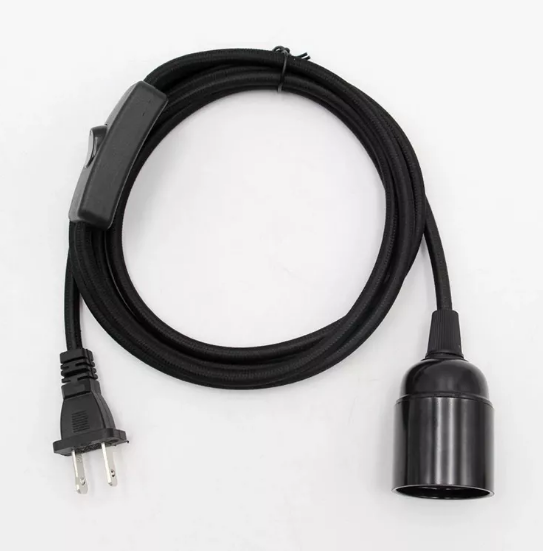

When you look at a lamp cord and see a label like 18/2, it’s telling you about the wire's size and construction. The first number indicates the gauge of the wire, while the second number shows how many conductors are inside the cord.
18 refers to the gauge of the wire, meaning it’s 18-gauge wire. This is a common size for most lamps.
2 indicates the number of conductors in the cord. In this case, it means there are two wires: one for the live (hot) wire and one for the neutral wire.
In addition to these numbers, you may also see labels like SPT-1 or SPT-2 on the cord. These labels refer to the type of insulation used in the wire. SPT-1 is a thinner insulation, typically used in lighter-duty applications, while SPT-2 has thicker insulation, which is better for higher-power needs, such as portable lamps or lamps that need to handle more electricity.
The main difference between SPT-1 and SPT-2 wires lies in the thickness of the insulation. Both types are commonly used in lamp wiring, but they are designed for different purposes.
SPT-1 has thinner insulation, which makes it more flexible and suitable for indoor use, such as in table lamps or light fixtures that don't need to handle much heat. It works well in low-power applications where flexibility is important.
SPT-2 features thicker insulation, offering better protection against heat and wear. This makes it a better choice for higher-power lamps, or when the lamp is used outdoors where the cord might be exposed to more wear and tear. The added insulation helps it resist abrasion and prevents damage in more demanding environments.
For most indoor uses, such as wiring a standard table lamp or light fixture, SPT-1 will do the job. However, if you're working with a floor lamp that needs to handle more power or if the lamp will be exposed to outdoor conditions, SPT-2 is the better option for added durability and safety.
Choosing the right lamp wire gauge can seem tricky, but it’s essential for both safety and performance. Several factors play a role in determining the correct wire size for your lamp, including its wattage, type, and cord length.
When picking the wire gauge, consider these key factors:
Lamp Wattage: The higher the wattage of the lamp, the thicker the wire you'll need. For lamps with higher wattage (above 100 watts), you'll need 16-gauge or 14-gauge wire to safely handle the electrical load.
Lamp Type: Larger fixtures, such as floor lamps or pendants, often require thicker wire to handle more current. Smaller lamps, like table lamps, usually work well with 18-gauge wire.
Cord Length: Longer cords increase the chance of voltage drops, which can affect the lamp's performance. For longer cords, you may need a thicker wire (such as 16-gauge) to ensure proper power delivery over the distance.
By considering these factors, you can choose the best wire gauge to meet the needs of your lamp while maintaining safety and efficiency.
Grounding is an essential safety feature in lamp wiring. It helps prevent electrocution by directing any electrical faults safely to the ground. If a lamp has a fault in the wiring or an internal issue, the ground wire ensures the electricity doesn't travel to metal parts where it could pose a danger.
Here’s when you should use a ground wire:
For metal lamp fixtures: If the lamp has a metal body or frame, it could become live if there’s a fault in the wiring. Grounding these metal parts ensures they don’t pose a risk of electrical shock.
For pendant lights or chandeliers: These types of fixtures often have exposed metal parts. If a fault occurs, grounding ensures that any stray electricity is safely directed to the ground, reducing the risk of shock.
In any situation where metal parts of a lamp are involved, grounding is vital to ensure safety and prevent potential hazards.
Using the wrong wire gauge in your lamp can create serious safety hazards. If the wire is too thin for the amount of power the lamp requires, it can lead to overheating and other issues. Here are some of the main risks:
Overheating: A wire that is too thin for the current may overheat. This can cause the insulation to melt or catch fire, putting your home and family at risk.
Voltage Drops: Thinner wire may not deliver enough power to the lamp. This can result in dim lights, flickering, or even electrical malfunctions. Over time, this could damage your lamp or shorten its lifespan.
It's important to select the proper wire gauge to ensure both the performance and safety of your lamp.
The length of your lamp cord is crucial for both convenience and safety. If the cord is too short, it may limit where you can place the lamp or cause an unsafe setup. On the other hand, a cord that's too long can create a tripping hazard or become tangled.
Table lamps usually need cords that are about 8 feet long. This length is ideal for most indoor settings, providing enough reach to plug the lamp in without being too long.
Floor lamps often require 10-foot or longer cords. These lamps need extra length to reach outlets in larger rooms or to provide more flexibility in placement.
Swag lamps generally require cords that are at least 15 feet long. The extra length helps you adjust the lamp’s position, especially when it is suspended from the ceiling.
Choosing the correct lamp wire gauge is essential for both the performance and safety of your lighting fixtures. Whether you're rewiring an old lamp or installing new lighting, understanding the right wire gauge ensures the lamp functions efficiently and safely. Always consider the lamp’s wattage, the fixture type, and the insulation of the wire when making your selection. If you need further assistance, welcome to see our products.
1. What gauge is most common for lamp wiring?
18-gauge wire is the most common for general lamp wiring, offering a good balance of safety and flexibility.
2. When should I use a thicker gauge like 16 or 14?
Use thicker wires like 16 or 14 gauge for lamps with higher wattage or for outdoor use.
3. Why is grounding important in lamp wiring?
Grounding helps prevent electrocution by directing electrical faults safely to the ground, especially in metal fixtures.
4. How do I know if my lamp needs a ground wire?
If your lamp has metal parts that could become live, such as in pendant lights, you need to ground it.
5. Does the length of the lamp cord matter?
Yes, the cord length should be sufficient to reach an outlet without creating hazards, such as tripping.
